Name Photo Typ Feature Dimension Frequency Range Green Products Download
石英晶体谐振器  5032 Glass 2pad   Small SMD glass sealed crystal units   5.0*3.2*1.3  10.000MHZ~80.000MHZ yes

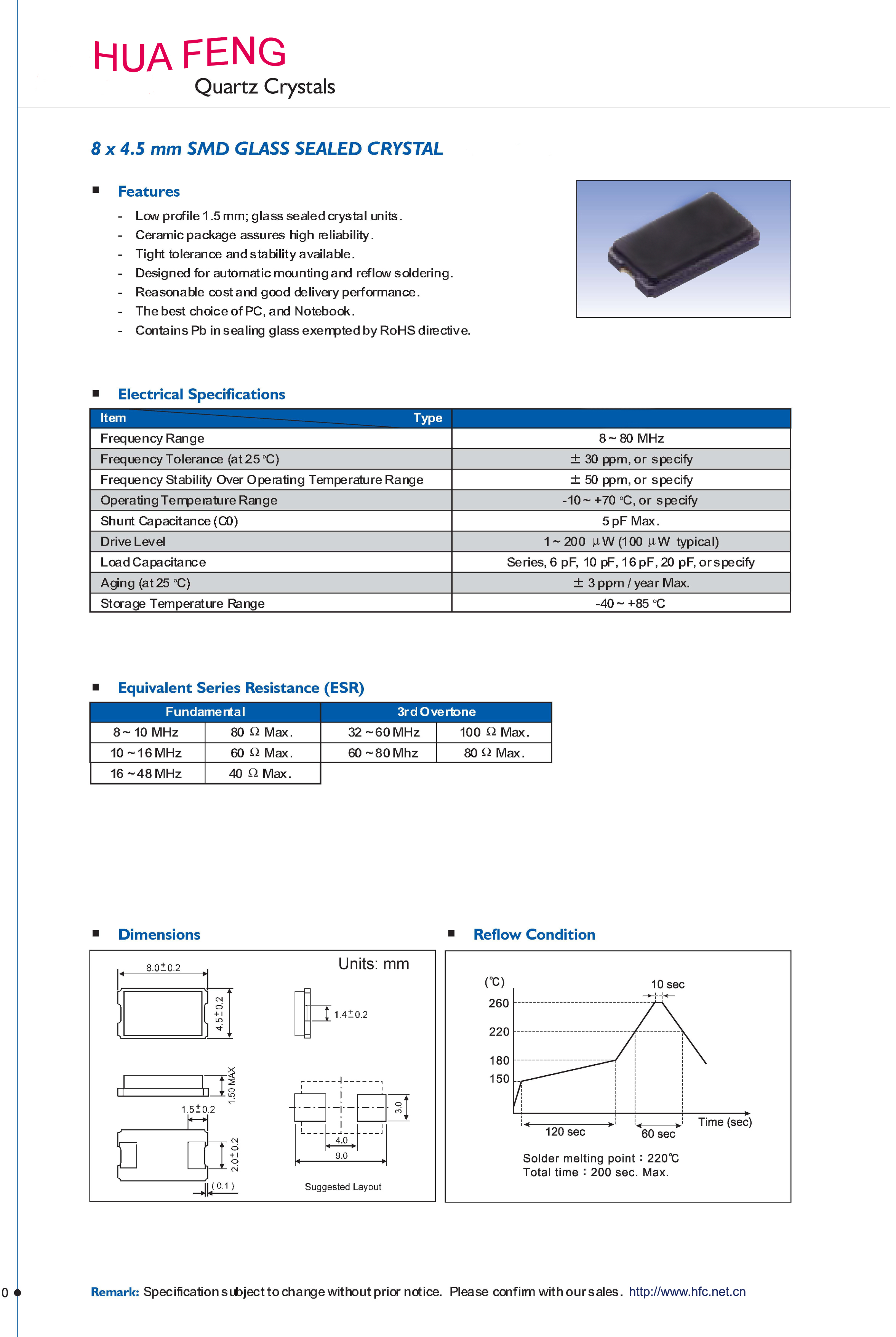

石英晶体谐振器  8045 Glass 2pad   Low profile 1.5mm;glass sealed crystal units   8.0*4.5*1.5  8.000MHZ~80.000MHZ yes

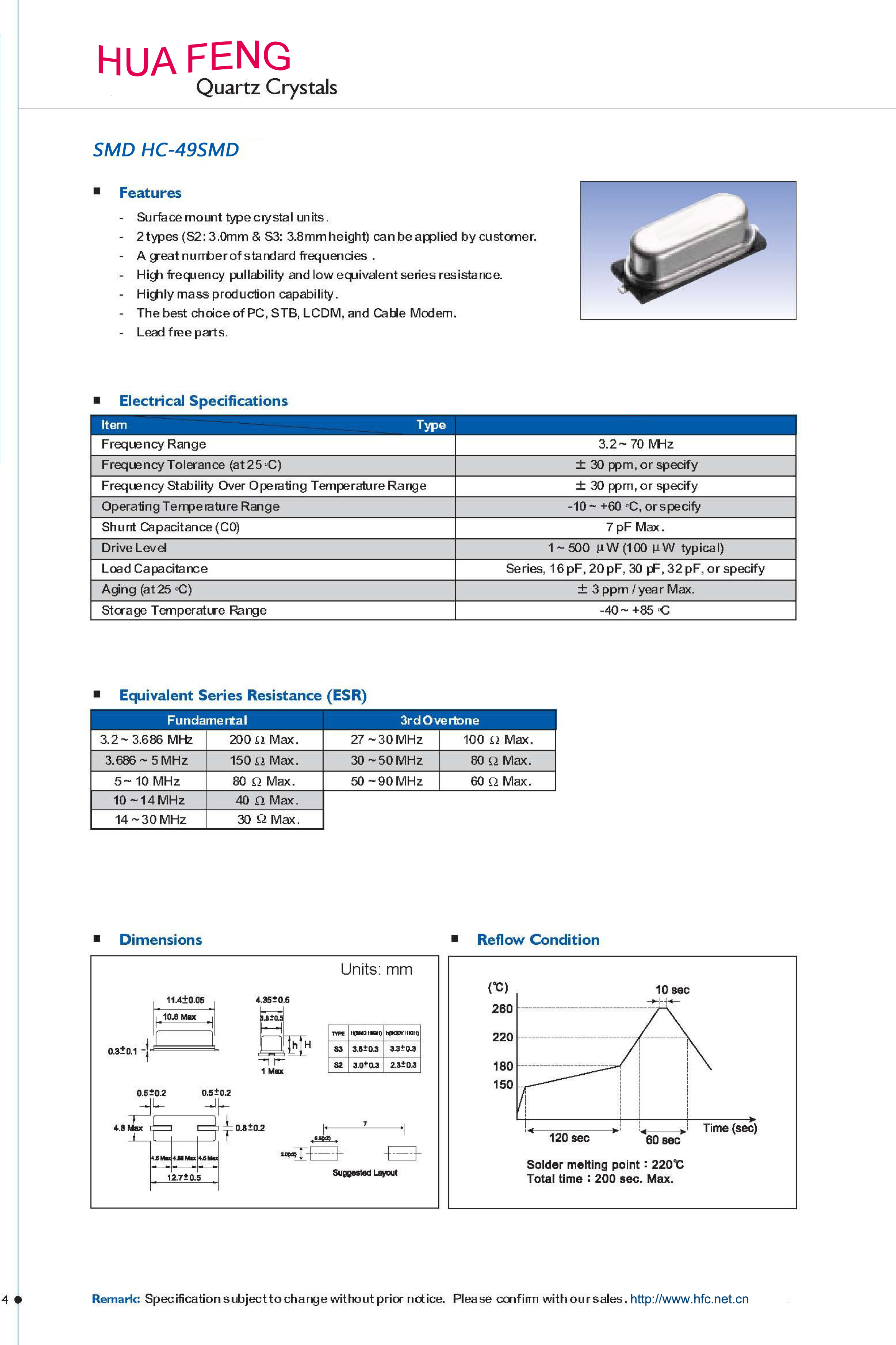

石英晶体谐振器  HC-49SMD   Surface mount type crystal units    10.6*3.8*4.2
10.6*3.8*3.2
3.200MHZ~90.000 MHZ yes

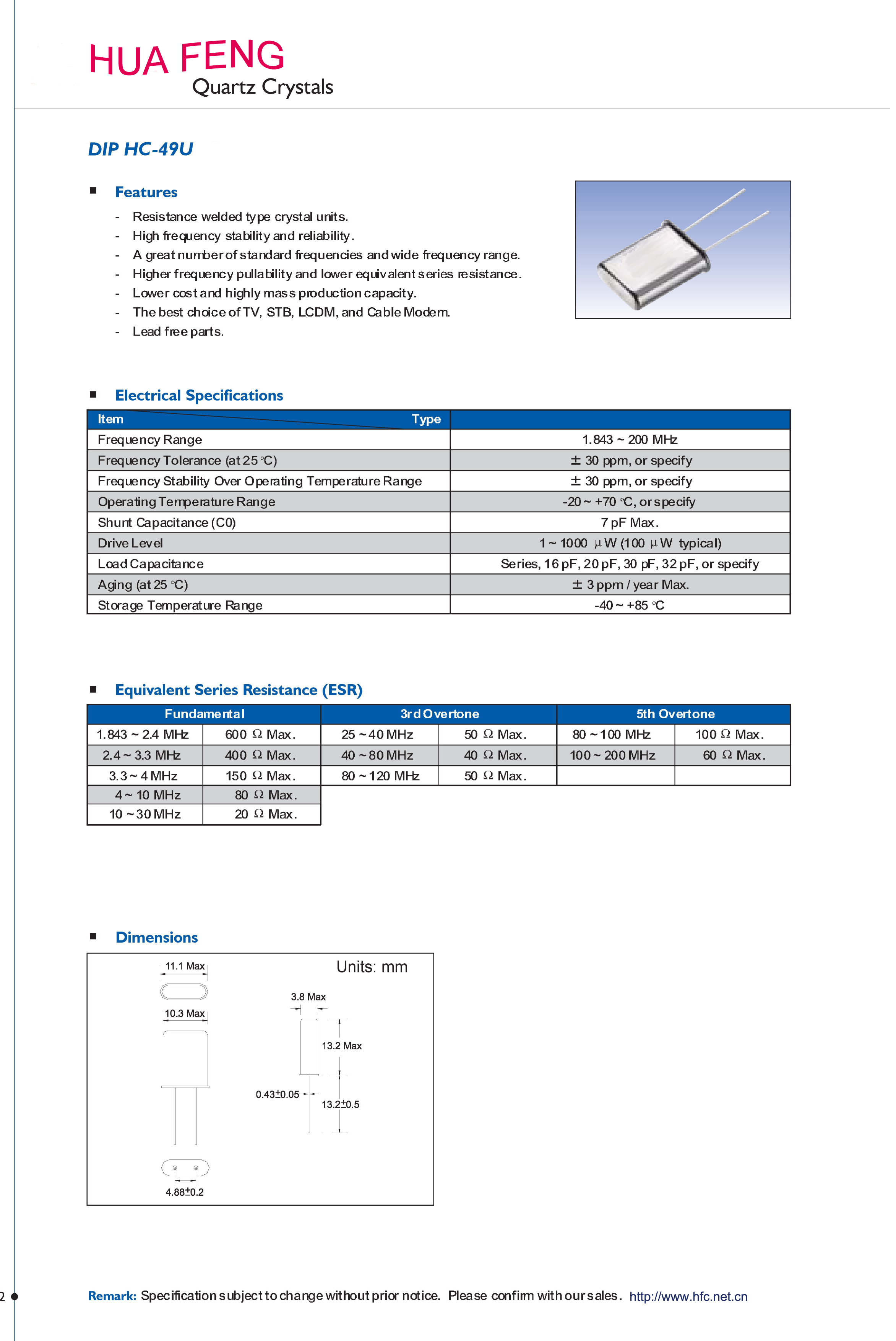

石英晶体谐振器  49u dip   Resistance welded type crystal units   13.2*10.*3.8  1.700MHZ~125.000MHZ yes
